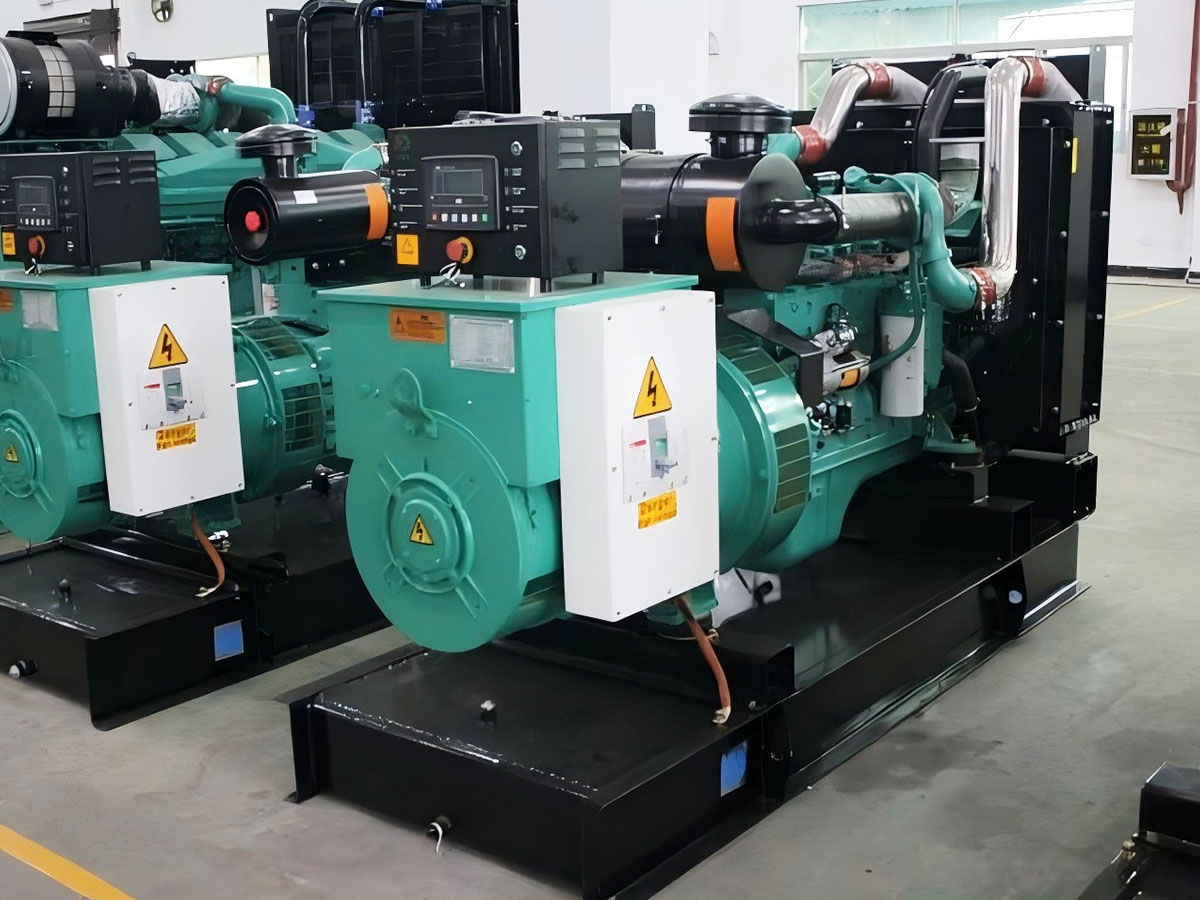

Diesel engine generator set overloading failure causes and preventive measures

2026-10-02 02:56:56

Causes and Preventive Measures for Overloading Failure of diesel engine generator sets

Diesel Engine Generator Sets (DEGS) are critical power assets in industrial facilities, data centers, healthcare institutions, and remote areas, providing reliable backup power during grid outages and primary power in off-grid locations. However, overloading is one of the most prevalent and damaging failure modes for DEGS, leading to unexpected tripping, component degradation, reduced service life, and even catastrophic breakdowns if unaddressed. A 2022 study by the International Energy Agency (IEA) noted that overloading accounts for approximately 35% of all DEGS-related failures globally, highlighting the urgency of systematic analysis of its root causes and preventive strategies. This paper comprehensively explores the underlying causes of DEGS overloading and proposes actionable measures to enhance operational reliability and longevity.

---

Root Causes of DEGS Overloading Failure

Overloading occurs when the total load demand exceeds the DEGS’s rated continuous power capacity (typically expressed in kilovolt-amperes, kVA, or kilowatts, kW). The causes can be categorized into electrical load-side anomalies and prime mover (diesel engine)-related factors, each contributing to excessive stress on the generator set.

1. Electrical Load-Side Anomalies

This category accounts for nearly 50% of overloading incidents, driven by mismatches between load characteristics and DEGS design specifications:

- Inrush Current from Simultaneous Motor Starting: Induction motors (the most common load in industrial applications) draw 5–7 times their rated current during startup to overcome inertia. If multiple large motors (e.g., conveyor systems, pumps) are started simultaneously, the cumulative inrush current can surge to 2–3 times the DEGS’s rated peak capacity, triggering overcurrent protection tripping even if steady-state load remains within limits. For example, a manufacturing plant with three 100 kW pumps may see a combined inrush of 1,500 kVA, while its DEGS is only rated for 1,200 kVA, leading to immediate overload.

- Nonlinear Loads and Harmonic Pollution: Modern DEGS often power nonlinear loads such as variable frequency drives (VFDs), rectifiers, uninterruptible power supplies (UPS), and LED lighting. These devices generate non-sinusoidal current waveforms that produce odd harmonics (3rd, 5th, 7th, etc.), increasing the total apparent power (kVA) required by the system. Even if active power (kW) stays within the DEGS’s limit, a low power factor (PF, often <0.8) due to harmonics can push apparent power beyond the generator’s rated capacity, leading to "apparent overloading." A 2021 technical report from the Institute of Electrical and Electronics Engineers (IEEE) found that nonlinear loads can increase apparent power demand by 20–40% in systems without harmonic mitigation.

- Short-Circuit or Ground Faults: Wiring errors, insulation degradation, or component failure can cause phase-to-phase or phase-to-ground short circuits, resulting in instantaneous current spikes 10–20 times the DEGS’s rated current. While these are acute failure events, they are often misclassified as overload if protective relays do not trigger fast enough to isolate the fault, leading to sustained overcurrent stress on the generator.

2. Diesel Engine and Prime Mover-Related Factors

The diesel engine is the power source for DEGS, and its performance degradation or undersizing directly causes overloading:

- Undersizing and Inadequate Power Reserve: Many DEGS are sized based on peak steady-state load without accounting for future growth or short-term overload needs. DEGS manufacturers typically recommend a 20–30% power reserve for critical applications, but undersizing (e.g., selecting an 800 kVA DEGS for a 750 kVA load) leaves no buffer for transient events. Additionally, the engine’s short-term overload capacity is limited to 10–15% of continuous rated power, only sustainable for 5–10 minutes; exceeding this leads to thermal overload and shutdown.

- Engine Performance Degradation: Aging engines suffer from wear (e.g., cylinder liner wear, valve leakage, clogged fuel injectors) that reduces combustion efficiency and power output. For example, a diesel engine with 10,000 hours of operation may lose 15–20% of its rated power due to wear, making it unable to meet its original load capacity. Overheating from faulty cooling systems (clogged radiators, failed cooling fans) also triggers engine power derating, as the control unit reduces output to prevent thermal damage, leading to effective overloading under normal load conditions.

- Fuel System Malfunctions: Restricted fuel flow from clogged filters, faulty fuel injectors, or insufficient pump pressure results in incomplete combustion, reducing the engine’s ability to deliver required power. This is a common hidden cause of overloading, as the engine appears to run but cannot sustain full load, leading to gradual overheating and overload alarms.

---

Preventive Measures for DEGS Overloading

Addressing overloading requires a holistic approach spanning design, installation, maintenance, and operation to mitigate both load-side and prime mover-related risks.

1. Optimal Sizing and Specification in Design Phase

Proper upfront design eliminates 60% of overloading risks:

- Accurate Load Calculation: Conduct a comprehensive load audit including active power (kW), reactive power (kVAR), harmonic distortion, and inrush current for all loads. Use demand factors (e.g., 0.7 for multiple conveyor systems) to account for concurrent operation probability, and add 20–30% reserve capacity to accommodate future load growth and transient overloads. For critical applications (e.g., data centers), select a DEGS rated for 125% of peak load with harmonic compatibility.

- Engine-Generator Matching: Ensure the diesel engine’s rated power matches the generator’s capacity, avoiding mismatches where the engine is underpowered for the generator. Turbocharged diesel engines are preferred for their higher overload capacity (up to 20%) compared to naturally aspirated units, making them suitable for variable load environments.

2. Electrical System Optimization

Mitigate load-side anomalies to reduce stress on the DEGS:

- Harmonic Mitigation and Power Factor Correction: Install active power filters (APFs) for nonlinear load-dominated systems to suppress harmonic currents and maintain power factor above 0.95. Unlike passive filters, APFs dynamically adjust to varying load conditions, preventing overcompensation and harmonic amplification. For small systems, a combination of capacitor banks and harmonic filters can effectively reduce apparent power demand by 15–25%.

- Load Sequencing and Soft Starter Integration: Use soft starters or variable frequency drives for large motors to reduce inrush current from 5x to 2x rated current. Implement automated load sequencing to start non-critical loads first and delay high-power loads (e.g., compressors, pumps) until the DEGS reaches stable operation. This avoids simultaneous inrush events and maintains load within 80% of rated capacity during startup.

- Advanced Protection Tuning: Adjust overcurrent protection relays to include time delays (e.g., 10–15 seconds) to avoid false tripping from inrush current. Set alarm thresholds at 90% of rated power (active and apparent) to alert operators before overload occurs, rather than waiting for tripping. Ground fault protection should be configured to isolate faults within 0.2 seconds to prevent sustained short-circuit overload.

3. Proactive Maintenance and Condition Monitoring

Regular upkeep prevents engine performance degradation and hidden failures:

- Engine Performance Maintenance: Implement a monthly maintenance schedule including fuel filter replacement, air filter cleaning, injector calibration, and compression testing to ensure optimal combustion. Inspect cooling systems quarterly to remove radiator scale, check fan operation, and verify coolant levels, preventing overheating-induced power derating.

- Real-Time Load Monitoring: Install a DEGS monitoring system to track key parameters: output current, voltage, power factor, active/apparent power, engine temperature, and speed. For unmanned systems, use automated load control (ALC) software that automatically prioritizes critical loads and sheds non-critical loads (e.g., exterior lighting, auxiliary HVAC) when power approaches 95% of rated capacity.

- Periodic Load Testing: Conduct full-load tests every 6 months (from 25% to 100% rated power, running for 30 minutes at each step) to validate DEGS performance. This identifies hidden issues such as clogged fuel injectors, inefficient cooling, or worn engine components that reduce power output, allowing corrective action before they cause overloading during a real event.

4. Operational Best Practices

Proper operation minimizes human-induced overloading:

- Operator Training: Train staff to avoid simultaneous startup of large loads, understand load profile changes, and respond promptly to alarm conditions. For example, operator should prioritize critical loads during grid outages and disable non-essential equipment if overload is imminent.

- Load Growth Management: Re-audit load requirements whenever new equipment is added, adjusting DEGS capacity or load distribution accordingly. For multi-generator systems, implement load sharing to distribute load evenly across units, preventing a single generator from being overloaded.

---

Conclusion

Overloading failure in DEGS is a multifaceted issue arising from both load characteristics and prime mover performance. By conducting accurate load audits, optimizing electrical systems, implementing proactive maintenance, and training operational staff, organizations can significantly reduce overloading incidents. A holistic approach that combines design rigor, real-time monitoring, and regular testing ensures DEGS operate within their rated capacity, enhancing reliability, extending service life, and ensuring uninterrupted power supply for critical applications.
