The Heart of Your Backup Power System: How an ATS Ensures Seamless, Uninterrupted Power

You have a powerful backup generator ready to go, but when the power cuts out, who tells it to turn on? And how does your building's electricity safely switch to the generator? The answer lies in a critical device: the Automatic Transfer Switch, or ATS. What is an ATS Panel, and how does it create a truly automated backup power system? This guide will walk you through everything you need to know about this essential component, the heart of any reliable emergency power setup. To ensure your system is seamless, explore our complete power solutions.

What is an Automatic Transfer Switch (ATS)?

An Automatic Transfer Switch (ATS) is an intelligent electrical switch that serves as the command center for your backup power system. Its fundamental job is to safely switch your building's electrical load between two sources: the primary utility grid and your backup generator. It automates what would otherwise be a slow, manual, and potentially dangerous process, ensuring you have uninterrupted power when you need it most.

The Primary Role: Sensing and Switching The "automatic" in its name is key. An ATS constantly monitors the incoming utility power. The moment it senses a power failure or significant voltage drop, its sensing and switching capabilities kick in. It isolates your electrical system from the grid and signals your generator to start, all within seconds.

Preventing Backfeed: A Critical Safety Feature One of the most vital functions of an ATS is preventing "backfeed." This is a dangerous situation where electricity from your generator flows back into the utility lines. An ATS acts as a crucial safety feature, ensuring that your system is completely disconnected from the grid before the generator takes over. This protects utility workers who may be working to restore power, thinking the lines are dead.

How Does an ATS Panel Work with Your Generator?

So, how does an automatic transfer switch work in a real-world scenario? The process is a seamless, four-step sequence that ensures a smooth transition to backup power.

Step 1: Utility Power Failure Detection The ATS continuously monitors the voltage and frequency from the utility grid. When it detects a power failure or instability that falls below a preset level, it initiates the transfer process.

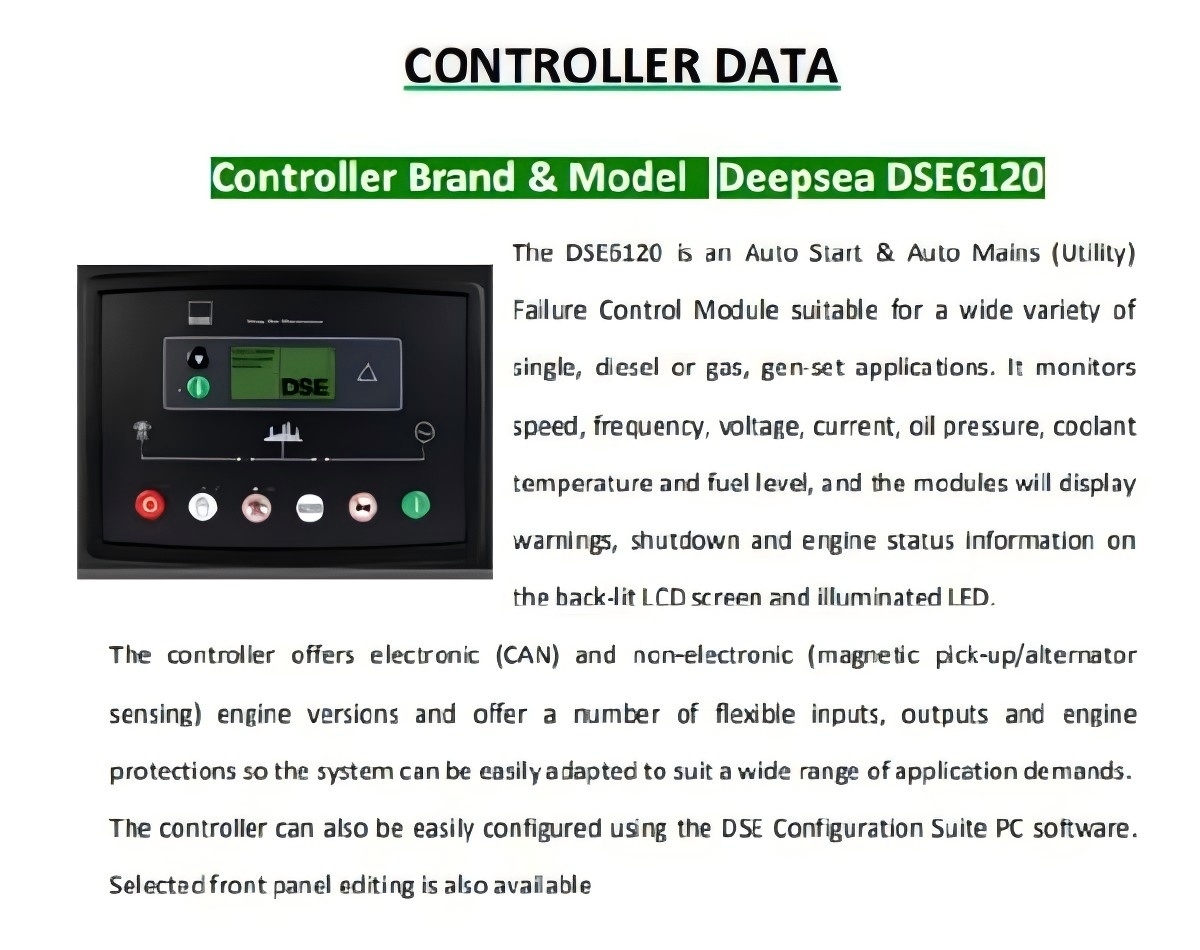

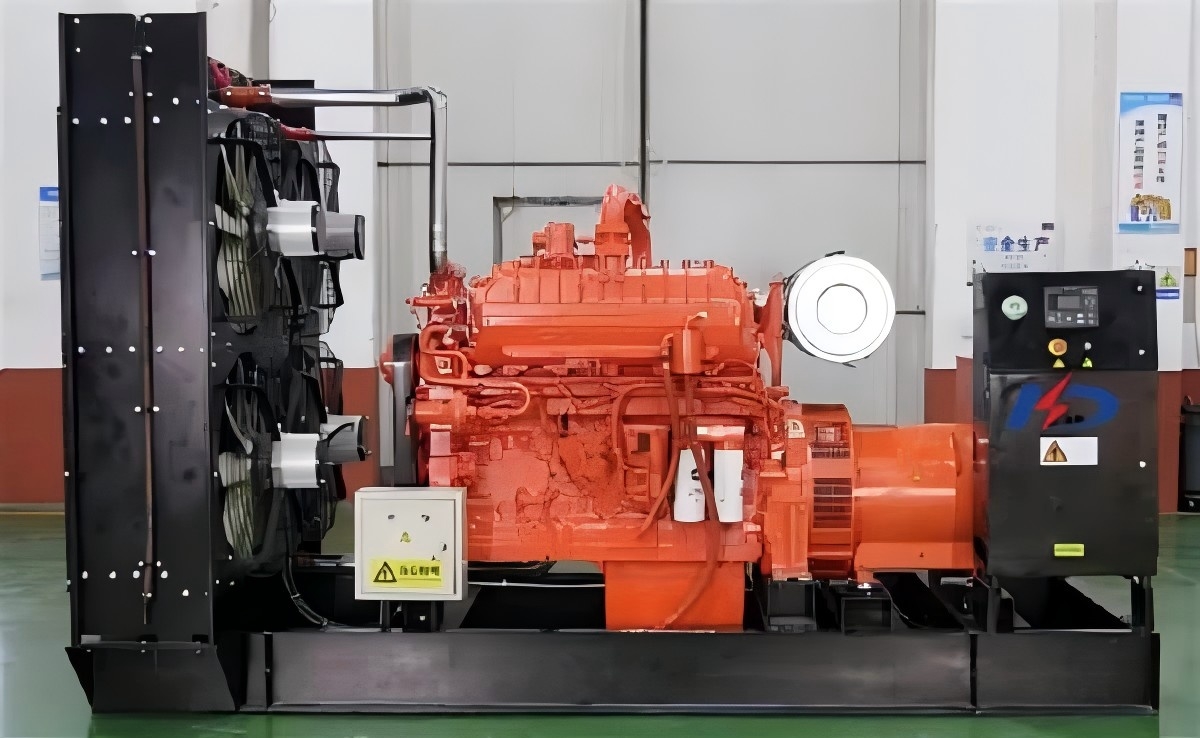

Step 2: Signaling the Generator to Start Immediately after detecting the outage, the ATS sends a start signal to your generator's control panel (like a Deepsea or ComAp controller). Your generator switch has now told the engine it's time to work.

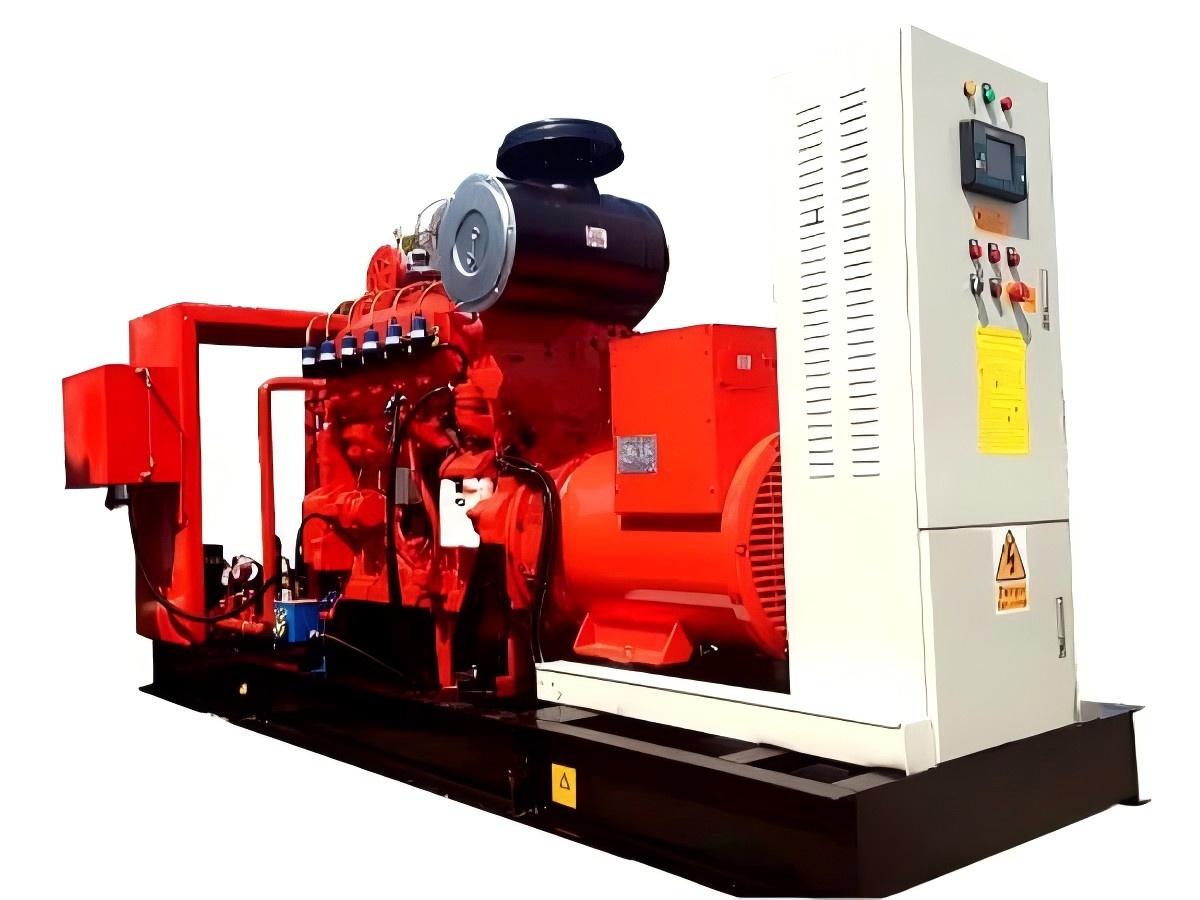

Step 3: Transferring the Load Once the generator starts and stabilizes at the correct voltage and frequency, the ATS performs its main function: transferring the load. It disconnects the building from the utility line and connects it to the generator line, restoring power to your critical circuits.

Step 4: Monitoring and Re-transfer The ATS doesn't stop working. It continues monitoring the utility line. Once it senses that stable power has been restored for a preset amount of time, it re-transfers the load back to the grid and signals the generator to cool down and shut off, resetting itself for the next potential outage.

Key Features of a High-Quality ATS Panel

Not all ATS panels are created equal. When selecting an ATS Panel, look for features that guarantee reliability and safety. At camda, our panels are designed with top-tier components and functionalities.

On-Load Switching Capability A high-quality ATS can perform on-load switching, meaning it can transfer the power source without first having to shut down the electrical load. This is essential for maintaining continuous operation.

Manual Emergency Operation In the rare event of a control failure or for maintenance purposes, manual operation is a crucial feature. Our ATS panels allow for safe emergency manual transfer, giving you full control when needed.

Stable Positions and Safety Padlocking Our ATS units feature three stable positions (Utility, Off, and Generator), preventing any accidental connection between the two power sources. Additionally, padlocking capabilities ensure the switch can be securely locked in any position for maximum safety during maintenance.

Trusted Components: The SOCOMEC Advantage The reliability of an ATS depends on its core components. That's why we use trusted components from world-class brands like SOCOMEC of France. This commitment to quality ensures your backup power system is built on a foundation of proven performance.

Where is an Automatic Transfer Switch Necessary?

So, where is an ATS necessary? Any facility that cannot afford downtime needs an ATS. This includes a wide range of critical applications.

Data Centers & IT Infrastructure For data centers, even a few seconds of downtime can result in catastrophic data loss. An ATS ensures an instantaneous and reliable switch to backup power, protecting valuable information and maintaining business continuity.

Hospitals & Critical Care Facilities In hospitals, an uninterrupted power supply is a matter of life and death. An ATS guarantees that life-support systems, surgical equipment, and critical monitoring devices remain operational during an outage.

Industrial Manufacturing Unexpected shutdowns in industrial manufacturing can lead to costly production losses and equipment damage. An ATS keeps production lines moving and protects sensitive machinery from abrupt power cuts.

Commercial and High-Rise Buildings In commercial buildings, an ATS ensures that essential services like emergency lighting, elevators, and security systems continue to function, guaranteeing the safety of occupants.

Conclusion: The Smart Choice for Uninterrupted Power

An Automatic Transfer Switch is more than just a component; it is the brain of your entire backup power strategy. It provides the automation, safety, and reliability needed to transform a simple generator into a seamless, uninterrupted power system. Investing in a high-quality ATS Panel is a smart choice for protecting your assets, ensuring safety, and maintaining operational continuity. When combined with a reliable generator, it forms the backbone of a complete power solutions package.

Frequently Asked Questions (FAQ)

Q1: What size ATS do I need for my generator? The ATS should be sized to handle the full amperage of your building's main electrical service, not just the generator's output. For example, if your facility has a 400-amp service, you need a 400-amp ATS, even if your generator is smaller. This ensures it can safely manage the entire load when utility power is active.

Q2: Can I install an ATS myself? No, an ATS installation is a complex electrical task that should only be performed by a qualified and licensed electrician. Incorrect installation can be extremely dangerous and may not comply with local electrical codes.

Q3: What is the difference between a 2-pole and a 4-pole ATS? A 2-pole ATS switches the two "hot" lines in a single-phase system, while a 4-pole ATS switches the three "hot" lines plus the neutral line in a three-phase system. For most industrial and commercial applications that use a three-phase generator, a 4-pole ATS is necessary to fully isolate the system during a transfer, which is a requirement in many regions.
