KDGH120-BG 50HZ
Ratings
Rated Power kVA 150 kW 120 Voltage type 50Hz, 380/220V, 3 phases and 4 wires
Performance Data
Engine Brand & Model HGN14 Alternator Brand & Model LSA44.3L10/120KW Control System Deepsea DSE6120 Standard Noise Level@7m (Soundproof Sets) 75 dBA Circuit Breaker Type 3 Poles MCCB Frequency & Phase 50hz 3Phases + 4Wires Engine Speed (RPM) 1500 Fuel Consumption (Nm3/hr) 100% Load 37.71
* The above fuel consumption is calculate with the natural gas whose heat value is 35.8MJ/Nm3
Dimensions and Weights
Engine Brand & Model: HGN14 Engine Data How to check the battery: ◇Remove the adhesive tape and ventilation opening cover. ◇In accordance with the level indication to fill electrolyte in each cubicles of the battery body. Electrolyte is a kind of pure sulphuric acid used for recharging. Its specific gravity is 1270 G/L (1230 G/L in tropical region). Its temperature will be around 15℃ when it's full on recharging. ◇After the batteries get full, please keep for 30 minutes-1 hour, and check the level of electrolyte, fill it up again if necessary. ◇Cover the ventilation opening, and clean the spilled electrolyte. Caution: All the batteries will lose electricity after a period of time, even stored well. Cold weather will also impact their performance. ◇In order to make the batteries work well, it's necessary to check the capacity of them and recharge ( 3 hours at least.) When their storage time is over 8 months or need work at low temperature, recharge is needed. Use acid liquor safely: It is normal to use acid liquor to clean weilding parts or spare parts. The following are some advices when to use acid liquor: ◇Avoid to touch skin, eyes and clothes ◇Be away from flammable resources, spark and fire when make rusting process ◇Don't let the acid liquor flow onto concrete floor because it will rot lime of concrete. If the acid liquor is flow onto concrete, please put some lye to neutralize. ◇Acid liquor will react with some metals and form some gas. Generally speaking, it will be formed carbon dioxide if acid liquor touch with concrete and metal cover, which is normal. But it will produce some toxic and exploding gas when acid liquor touch with aluminium, zinc, sulfur, etc. So when use the acid liquor, please keep well-ventilated and avoid unnecessary injury. ◇Please seal the bottle cover after using acid liquor and store it into suitable place. Hot Tags: 120 KW Biogas Generator, China, suppliers, manufacturers, factoryContent Open type Soundproof Sets Dimensions: (mm) L 2800 3500 W 850 1300 H 1480 1900 Weights (kg) 1850 2850 No. of Cylinders 6 Engine power(KW) 145 Cycle 4 Stroke Cylinder Type Wet Bore * Stroke (mm) 140 * 152 Compression Ratio 0.459027778 Induction Aftercooled Displacement (L) 14 Cooling Method Water cooled Governing Type Electronic Starting method 24V DC motor Coolant capacity, including radiator (L) 66.8 Lubricant Oil 15W40-CF4 or above grade Oil pan capacity (L) 36

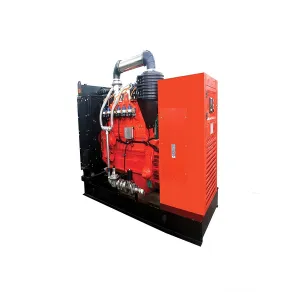

120 KW Biogas Generator – Complete Technical Guide, Specifications, Applications & Industry Overview
The 120 KW BioGas Generator is a medium-capacity renewable energy system designed to convert biogas produced from organic waste into stable electrical power. It is widely used in agricultural biogas plants, wastewater treatment facilities, landfill gas recovery systems, food processing industries, and distributed energy networks.
As global demand for clean and sustainable energy continues to rise, the 120 kW bioGas Generator Set plays a key role in reducing greenhouse gas emissions and transforming waste into valuable energy resources. It provides reliable electricity output while supporting circular economy models and carbon reduction goals.
This system is engineered for continuous operation, high efficiency, and stable performance even under variable biogas quality conditions.
A 120 KW biogas generator is a combustion-based power generation system that uses biogas as its primary fuel source instead of diesel or natural gas.
Biogas is typically produced through anaerobic digestion of organic materials such as:
Animal manure
Agricultural waste
Food waste
Sewage sludge
Industrial organic residues
| Component | Percentage |
|---|---|
| Methane (CH₄) | 50%–70% |
| Carbon Dioxide (CO₂) | 30%–50% |
| Hydrogen Sulfide (H₂S) | Trace amounts |
| Moisture | Variable |
The generator converts methane energy into mechanical energy and then into electricity via an alternator.
The operation of a 120 kW biogas generator system follows a structured energy conversion process:
Organic waste decomposes in anaerobic digesters, producing methane-rich gas.
Impurities such as H₂S, moisture, and siloxanes are removed to protect engine components.
Pressure and flow are stabilized for consistent combustion performance.
The engine burns biogas in a controlled internal combustion chamber.
Mechanical energy drives the alternator to produce 120 kW of electrical output.
Waste heat can be captured for heating or process use in CHP systems.
Stable 120 kW rated output power
High-efficiency biogas combustion engine
Low emissions and environmentally friendly operation
Suitable for continuous 24/7 industrial use
Advanced PLC control system
Automatic fault detection and protection
Corrosion-resistant engine components
Compatible with CHP (Combined Heat and Power) systems
Low operational cost due to renewable fuel source
The 120 KW Biogas Generator Set is widely applied across multiple industries:
Livestock manure treatment
Crop residue energy recovery
Rural decentralized energy systems
Sewage sludge digestion
Biogas recovery from treatment tanks
Energy self-sufficiency systems
Methane capture from landfill sites
Greenhouse gas emission reduction
Electricity generation from waste gas
Organic waste utilization
Brewery and dairy waste energy recovery
Distributed energy generation
Backup and peak shaving power
Reduces methane emissions
Supports carbon neutrality goals
Converts waste into renewable energy
Reduces landfill pollution
Low fuel cost (biogas is often self-produced)
Reduced electricity bills
Short ROI period in many projects
Additional revenue from energy export
Continuous stable operation
High automation level
Low maintenance requirements
Reliable performance under variable loads
Optimized combustion system
High thermal efficiency engine design
Stable output even with fluctuating gas quality
| Parameter | Specification |
|---|---|
| Rated Power | 120 kW |
| Fuel Type | Biogas |
| Engine Type | Gas internal combustion engine |
| Frequency | 50Hz / 60Hz |
| Voltage | 400V / 230V customizable |
| Cooling System | Water-cooled radiator system |
| Starting System | Electric start |
| Operation Mode | Continuous / Standby |
| Control System | PLC automatic control |
| Parameter | Value |
|---|---|
| Electrical Efficiency | 35%–42% |
| Thermal Efficiency (CHP) | Up to 85% |
| Gas Consumption | 0.45–0.65 m³/kWh |
| Operating Hours | 8000+ hours/year |
| Noise Level | ≤ 75 dB (enclosure system) |
| Emission Type | Level |
|---|---|
| CO Emission | Low (controlled combustion) |
| NOx Emission | Optimized reduction system |
| SOx Emission | Minimal |
| Particulate Matter | Very low |
Specially designed for methane combustion
Reinforced ignition system
Corrosion-resistant internal structure
High-efficiency copper winding
Stable voltage output
Industrial-grade durability
H₂S removal unit
Moisture separator
Filtration system for impurities
PLC-based automation
Real-time monitoring
Fault alarm and shutdown protection
Radiator-based cooling
Optional heat recovery integration
Automatic oil circulation
Engine protection system
| Parameter | Requirement |
|---|---|
| Methane Content | 50%–70% |
| H₂S Level | < 200 ppm |
| Moisture | Low (dry gas preferred) |
| Pressure | Stable supply required |
High-quality biogas ensures:
Stable combustion
Longer engine lifespan
Higher efficiency
Reduced maintenance costs
Flat concrete foundation
Ventilated generator room
Safe gas pipeline layout
Maintenance clearance area
Gas storage or buffer tank nearby
Grid connection (optional)
Load balancing system
Gas leak detection system
Fire protection system
Emergency shutdown system
Check oil levels
Monitor gas pressure
Inspect cooling system
Air filter inspection
Exhaust system check
System diagnostics
Spark plug inspection
Gas line leak testing
Lubrication system check
Engine overhaul inspection
Alternator testing
Full system calibration
To improve performance of a 120 KW biogas generator, the following strategies are recommended:
Maintain stable methane concentration
Improve gas purification efficiency
Optimize engine load management
Use CHP heat recovery systems
Conduct regular tuning and calibration
| Feature | Biogas Generator | Diesel Generator |
|---|---|---|
| Fuel Cost | Very low | High |
| Emissions | Low | High |
| Sustainability | Renewable | Fossil fuel |
| Operating Cost | Low | High |
| Environmental Impact | Positive | Negative |
The 120 KW biogas generator can be integrated into a CHP system.
Electricity generation (120 kW output)
Heat recovery for industrial use
Increased total efficiency up to 85%
Greenhouse heating
Industrial hot water supply
Anaerobic digester heating
Low fuel cost (waste-based biogas)
Reduced electricity purchase
Potential grid export revenue
2 to 5 years depending on:
Biogas availability
Electricity price
Operating hours
The 120 KW biogas generator system provides significant environmental benefits:
Reduces methane emissions from waste
Lowers greenhouse gas footprint
Supports circular economy development
Improves waste management efficiency
Automatic shutdown protection
Gas leakage detection system
Overload protection
Temperature monitoring system
Emergency stop function
Transforms manure into clean electricity.
Uses sewage gas for renewable energy production.
Converts organic waste into usable power.
Ideal for off-grid power supply.
The biogas generator industry is evolving toward:
Smart IoT monitoring systems
Higher efficiency gas engines
Hybrid renewable energy integration
Carbon-neutral energy systems
Advanced gas purification technologies
It uses methane-rich biogas produced from organic waste.
Yes, it is designed for 24/7 industrial operation.
Yes, to remove impurities like H₂S and moisture.
Typically 15–20 years with proper maintenance.
Yes, with synchronization equipment.
The 120 KW Biogas Generator is a highly efficient renewable energy solution that converts organic waste into stable electrical power. It plays a vital role in modern sustainable energy systems, offering economic, environmental, and operational benefits.
With strong adaptability, high efficiency, and low operating costs, it is widely used in agriculture, industry, and municipal energy projects worldwide.
