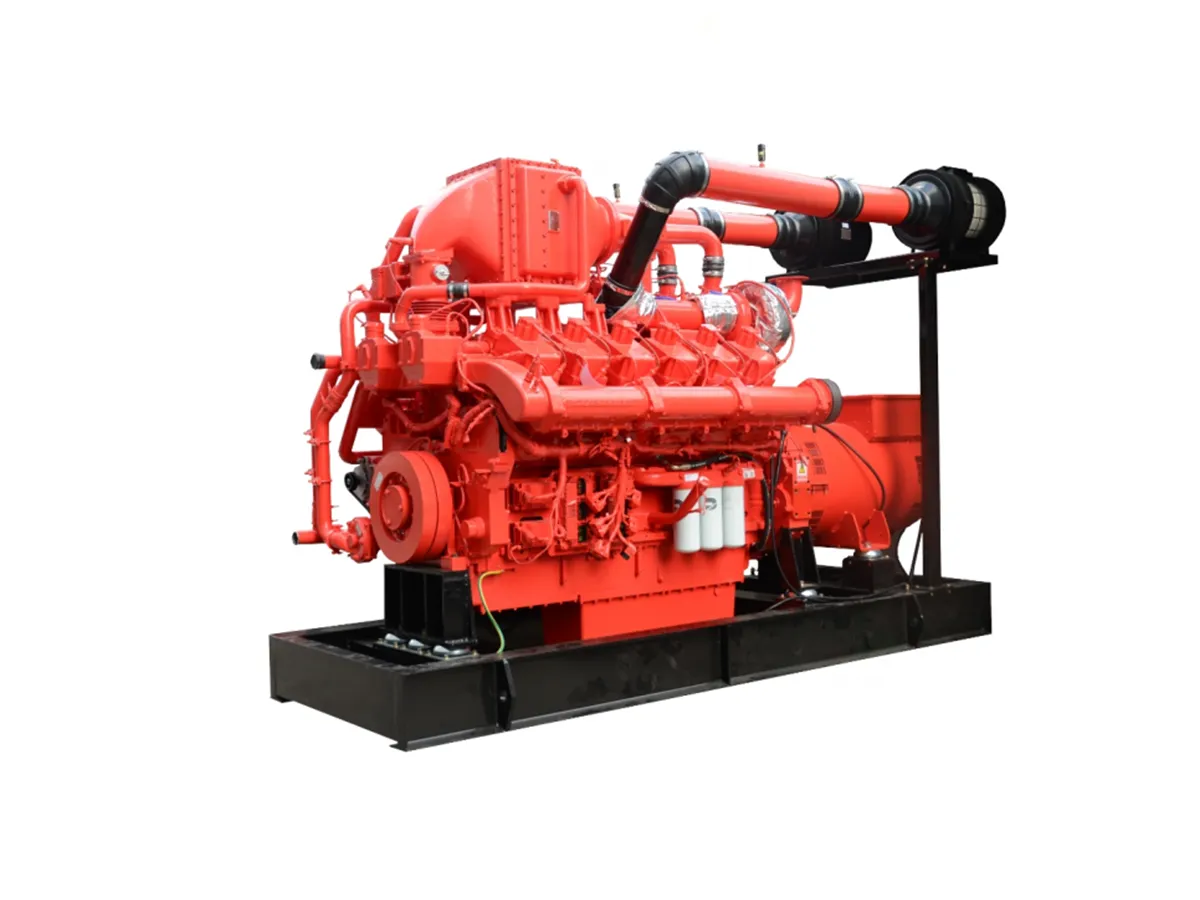

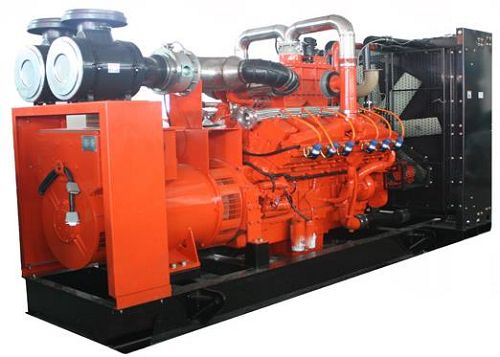

KDGH500-NG 50HZ
Ratings
Rated Power | kVA | 625 |
kW | 500 | |
Voltage type | 50Hz, 380/220V, 3 phases and 4 wires | |
*Ratings at 0.8 power factor
Performance Data
| Engine Brand & Model | K38N-G5 |
| Alternator Brand & Model | LSA49.3S4/500KW |
| Control System | Deepsea DSE6120 |
| Standard Noise Level@7m (Soundproof Sets) | 75 dBA |
| Circuit Breaker Type | 3 Poles MCCB |
| Frequency & Phase | 50hz 3Phases + 4Wires |
| Engine Speed (RPM) | 1500 |
| Fuel Consumption (Nm3/hr) 100% Load | 143.65 |
MJ/Nm3
Dimensions and Weights
| Content | Open type | Soundproof Sets | |
| Dimensions: (mm) | L | 4200 | 6058 |
| W | 2010 | 2438 | |
| H | 2480 | 2591 | |
| Weights (kg) | 6080 | 8700 | |
Engine Brand & Model: HGKT38
Engine Data
| No. of Cylinders | 12 V Type | Engine power(KW) | 570 |
| Cycle | 4 Stroke | Cylinder Type | Wet |
| Bore * Stroke (mm) | 159 * 159 | Compression Ratio | 11.5:1 |
| Induction | Turbocharged & Aftercooled | Displacement (L) | 37.8 |
| Cooling Method | Water cooled | Governing Type | Electronic |
| Starting method | 24V DC motor | Coolant capacity, including radiator (L) | 304.8 |
| Lubricant Oil | 15W40-CF4 or above grade | Oil pan capacity (L) | 87 |
How to examine the driving belt:
Examine all the belts, if there is any broken, we should change it immediately. If there are two or more belts to connect two pulleys, all the belts should be changed together.
Only when teh degree of belt tightness is good, the lifetime of the belt will be much longer. If there is not only one belt, the tighter belt of them ought to be checked or adjusted.
How to change the fan belt:
◇Take off the fan cover;
◇Take off the six bolts which fasten the fan and punch, and then take off the whole parts.
Note: Please be careful when take off the fan, to make sure not damage radiator.
◇Undo the tension regulator of belt, take off the old belt, make sure there is no oil stain in pully groove and then install new belt.
◇Install the fan and bolts, adjust the tension degree of fan belt, and then install fan cover.
Air intake system:
The function of gas engine air intake system is: after purification, the fresh air and certified gas fuel mix steadily and then enter into cylinder to meet the requirement of air and gas fuel for gas engine working.
Gas supply system includes air filter, mixer, pressure reducing valve and gas pressure stable equipment, etc. Please note that the direction of pressure reducing valve should not be mis-connected.
The adjusted valve is installed in the mixer exit. It is connected to speed regulating equipment to control air intake volume.
1. Pressure maintaining valve
Adopt the world famous JEASON diaphragm type, the structure of pressure maintaining valve is simple and it is easy to adjust, which ensure the reliable air intake pressure for genset.
2. Mixer
Mixer is a important part in the air intake system. It's main function is mix air and gas fuel steadily before entering into cylinder.
3. Air filter
The function of air filter is dedusting, reduce the wear and tear of cylinders and pistons, prolong the engine lifetime.
It's working principle is: air enter into inner chamber through filter air intake port.
Blade revolve when air flow.Then dust will be thrown into filter wall within the centrifugal force and sendimented in the air discharge exit. After that, air will enter into mix through the paper filter core hole.
4. Air intake pipe
Air intake pipe is the cast aluminimum members, 4/6 cylinders engine can be used together for each cylinder. Please note when you install air intake pipe, the mating face of air intake pipe and cylinder cover should be seal. It is not allowed to let any impuritied to enter into air intake pipe, otherwise it will enter into cylinders and cause engine damage.
Silent Diesel Generator Sets, diesel generator sets are carefully designed with the introduction of foreign low-noise generators and engine technology; advanced design concepts and complete varieties. In addition to the series of diesel generator sets and diesel generator sets, the products also have the following features: low noise, large overall structure and small footprint; all the boxes are detachable, and the cabinets are made of steel plates. The surface is coated with high-performance anti-rust paint, and has noise reduction and rainproof functions. The interior of the cabinet adopts multi-layer barrier impedance mismatched muffling structure and built-in large-scale impedance muffler. The design of the box structure is reasonable. There is a large-capacity fuel tank inside the cabinet. There are two maintenance doors at the same time for the unit to be repaired. At the same time, the observation window and the unit emergency stop fault button are opened on the box to observe the operation of the unit. The situation and the shutdown at the fastest speed in the event of an emergency in the unit to avoid damage to the unit.
1. The noise standard is in accordance with ISO374.
2. The interior uses a special sound-absorbing material, and the built-in silencer makes the structure compact.
3. Good ventilation and radiation protection structure.
4, the special handling of the box, fully adapted to all-weather use.
5, the reasonable position of the box to set the observation window, easy to observe and operate.
6. Specially equipped shock absorbers make the unit run quietly and peacefully.
7. The large-capacity pedestal tank saves installation and connection.
The above is the product design features of the silent generator set. Their ordinary generator set is quieter than the other, which can create a very comfortable working environment and has little impact on the surrounding environment. Therefore, the silent generator set is more and more popular among users.
Hot Tags: 500 KW Gas Generator, China, suppliers, manufacturers, factory
500 KW Gas Generator: Complete Technical Guide for industrial power generation Systems
A 500 KW Gas Generator is a high-capacity industrial power generation system designed to produce electricity using gaseous fuels such as natural gas, biogas, landfill gas, or other methane-rich fuel sources. It is widely used in factories, industrial plants, data centers, commercial facilities, hospitals, and large-scale distributed energy systems.
As global energy demand continues to grow and industries shift toward cleaner energy solutions, gas generators have become a critical part of modern power infrastructure. A 500 KW gas generator offers a balance between high output capacity and efficient fuel utilization, making it suitable for continuous operation and large-scale energy applications.
Unlike diesel generators, gas generators produce lower emissions, quieter operation, and improved long-term fuel efficiency, making them more suitable for environmentally conscious industrial operations.
What Is a 500 KW Gas Generator?
A 500 KW Gas Generator is an engine-based power system that converts chemical energy from gaseous fuel into mechanical energy, which is then transformed into electrical energy through an alternator.
Primary industrial power supply
Backup power generation system
Peak shaving energy solution
Combined heat and power (CHP) system
Distributed energy resource (DER)
Continuous 24/7 power generation unit
The 500 KW rating makes it suitable for medium-to-large industrial and commercial power requirements.
Importance of 500 KW Gas Generator in Modern Industry
Industrial facilities require stable, reliable, and cost-effective energy sources. The 500 KW gas generator provides a solution that combines efficiency with environmental sustainability.
Gas combustion produces fewer pollutants compared to diesel systems.
Ensures uninterrupted electricity for critical operations.
Can operate on multiple gas sources such as:
Natural gas
Biogas
Landfill gas
Syngas
Reduces dependency on grid electricity during peak pricing.
Supports emission reduction goals in industrial sectors.
Working Principle of 500 KW Gas Generator
The working process of a gas generator involves multiple stages of energy conversion.
Fuel gas is supplied from pipelines, storage tanks, or biogas systems.
Gas is filtered and regulated before entering the engine.
Processes include:
Pressure stabilization
Moisture removal
Impurity filtration
Gas is mixed with air and combusted inside the engine cylinders.
The combustion process drives pistons, producing rotational energy.
The alternator converts mechanical energy into electrical output.
Electricity is distributed to industrial loads or grid systems.
Main Components of 500 KW Gas Generator
The engine is the core component of the system.
Features:
High thermal efficiency
Continuous operation capability
Low emission combustion design
Turbocharged system (optional)
Converts mechanical energy into electrical energy.
Features:
Three-phase output
High voltage stability
Industrial insulation class
Efficient energy conversion
Advanced PLC-based control panel ensures automation.
Functions:
Automatic start/stop
Load monitoring
Fault protection
Remote operation capability
Frequency regulation
Maintains optimal engine temperature.
Types:
Water cooling system
Radiator cooling system
Heat exchanger system
Reduces engine wear and ensures smooth operation.
Ensures stable fuel-air mixture for combustion efficiency.
Technical Specifications of 500 KW Gas Generator
Parameter
Specification
Rated Power | 500 KW |
Standby Power | 550 KW |
Frequency | 50 Hz / 60 Hz |
Voltage | 400V / 415V / 480V |
Power Factor | 0.8 |
Fuel Type | Natural Gas / Biogas / Landfill Gas |
Engine Type | Gas Internal Combustion Engine |
Starting Method | Electric Start |
Cooling System | Water Cooled |
Operation Mode | Continuous Duty |
Speed | 1500 / 1800 RPM |
Protection Class | IP23 |
Control System | PLC Intelligent Control |
Performance Characteristics
Ensures consistent output under variable load conditions.
Depends on gas type and engine tuning.
Gas Quality
Efficiency Level
Low Quality Gas | Moderate |
Standard Gas | Good |
High Methane Gas | Excellent |
Designed for 25%–100% continuous operation.
Gas Consumption Rates
Load Level
Consumption (m³/h)
25% Load | 90–110 m³/h |
50% Load | 140–170 m³/h |
75% Load | 190–220 m³/h |
100% Load | 240–280 m³/h |
Advantages of 500 KW Gas Generator
Suitable for large industrial facilities.
Cleaner combustion compared to diesel systems.
Supports multiple gas fuel types.
Designed for 24/7 industrial use.
Reduces long-term energy expenses.
Provides consistent voltage and frequency output.
Applications of 500 KW Gas Generator
Provides stable power for heavy machinery.
Ensures uninterrupted electricity supply.
Supports critical life-saving equipment.
Used for peak shaving and backup power.
Utilizes biogas for electricity generation.
Converts landfill gas into usable electricity.
Supports large-scale farming operations.
Combined Heat and Power (CHP) Applications
Many 500 KW gas generators are integrated into CHP systems.
Higher energy efficiency
Reduced fuel consumption
Heat recovery utilization
Lower operational costs
Source
Application
Engine Cooling Water | Heating systems |
Exhaust Gas | Industrial heating |
Lubrication Oil | Hot water production |
Installation Requirements
Proper ventilation
Stable foundation
Safe gas handling area
Maintenance accessibility
Circuit breakers
Grounding system
Distribution panel
Protection relays
Stable and continuous gas supply is essential for performance.
Maintenance Requirements
Oil level check
Temperature monitoring
Gas pressure check
Filter cleaning
Cooling system inspection
Electrical connections check
Spark plug inspection
Sensor calibration
Lubrication system check
Engine overhaul
Alternator testing
System performance evaluation
Safety Considerations
Methane detection systems are required.
Fire suppression and emergency shutdown systems must be installed.
Proper grounding and overload protection are essential.
Environmental Benefits
Lower CO₂ and NOx emissions compared to diesel generators.
Supports biogas and landfill gas utilization.
Transforms waste gas into electricity.
Economic Benefits
Reduces dependence on grid electricity.
Provides long-term financial return through energy savings.
Uses low-cost or waste gas sources.
Comparison with Diesel Generators
Feature
500 KW Gas Generator
Diesel Generator
Emissions | Low | High |
Fuel Cost | Lower | Higher |
Noise Level | Low | High |
Maintenance | Moderate | High |
Efficiency | High | Moderate |
Future Development Trends
The gas generator industry is evolving rapidly.
IoT-based real-time performance tracking.
Predictive maintenance and efficiency control.
Integration with solar and battery storage.
Improved combustion and exhaust treatment systems.
Frequently Asked Questions (FAQ)
It is an industrial power generator using gas fuel to produce electricity.
Natural gas, biogas, and landfill gas.
Yes, it is designed for 24/7 industrial operation.
Approximately 240–280 m³/h at full load.
Yes, it produces lower emissions than diesel systems.
Yes, it is widely used in combined heat and power systems.
The 500 KW Gas Generator is a powerful, efficient, and environmentally friendly solution for industrial-scale electricity generation. With its ability to operate continuously on multiple gas fuels, it provides reliable energy for manufacturing, commercial, and infrastructure applications.
Its advantages in efficiency, fuel flexibility, and emission reduction make it a key technology in modern distributed energy systems and sustainable industrial development.
