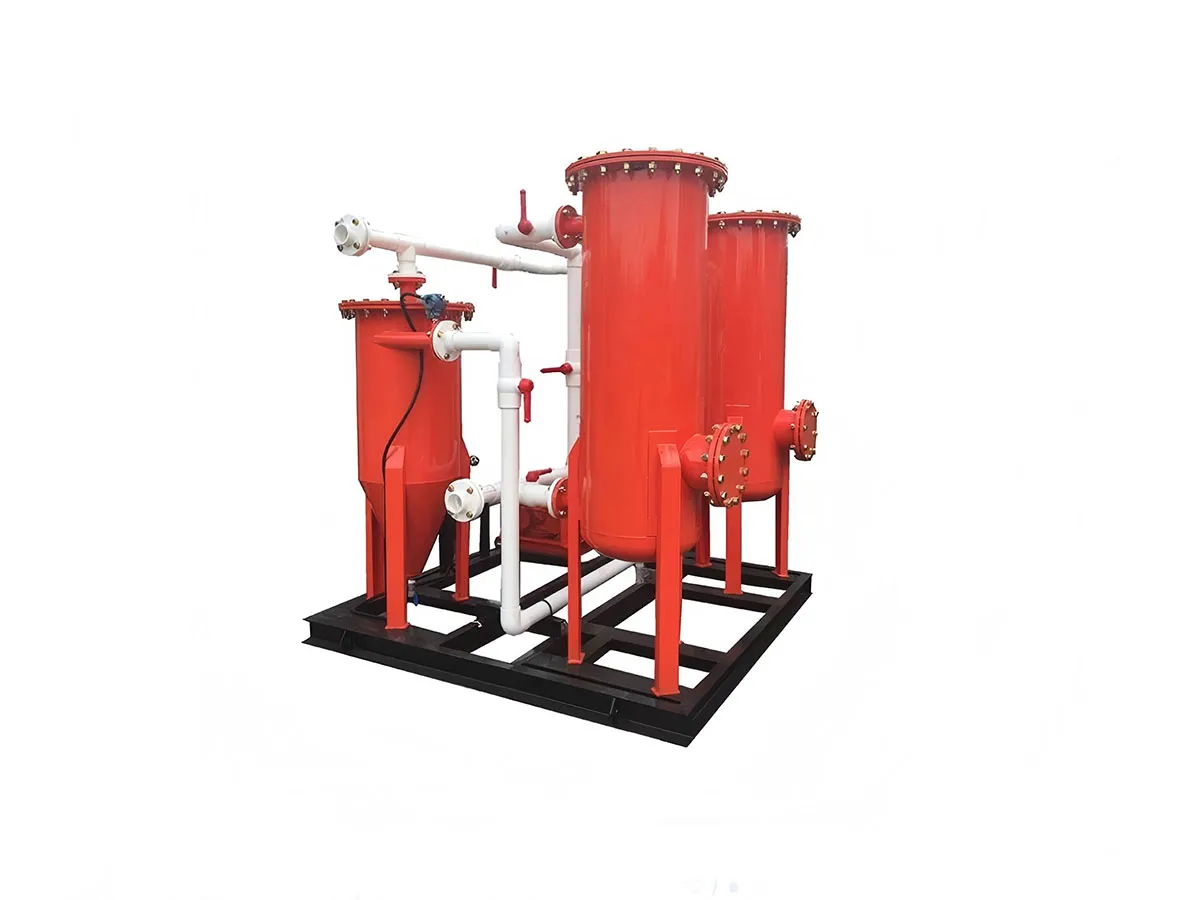

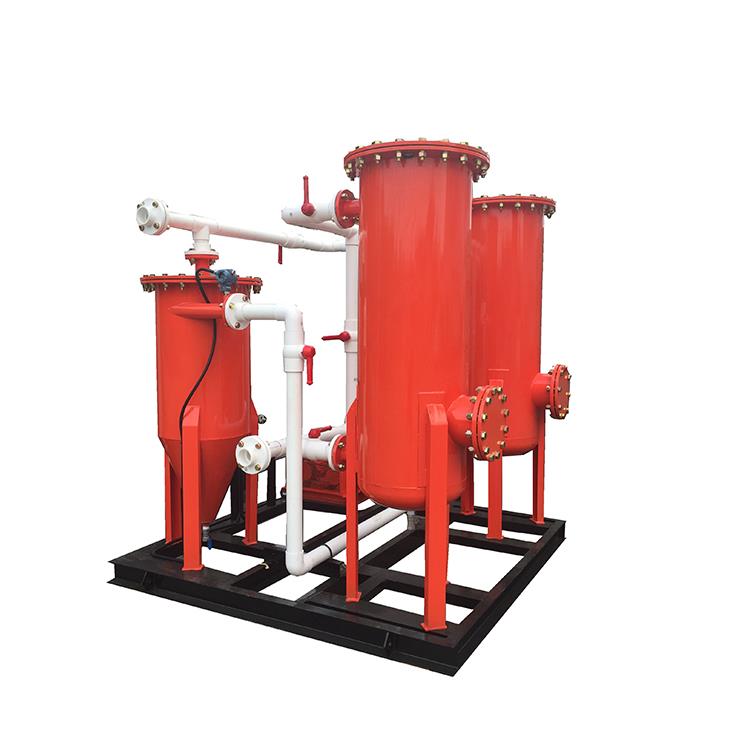

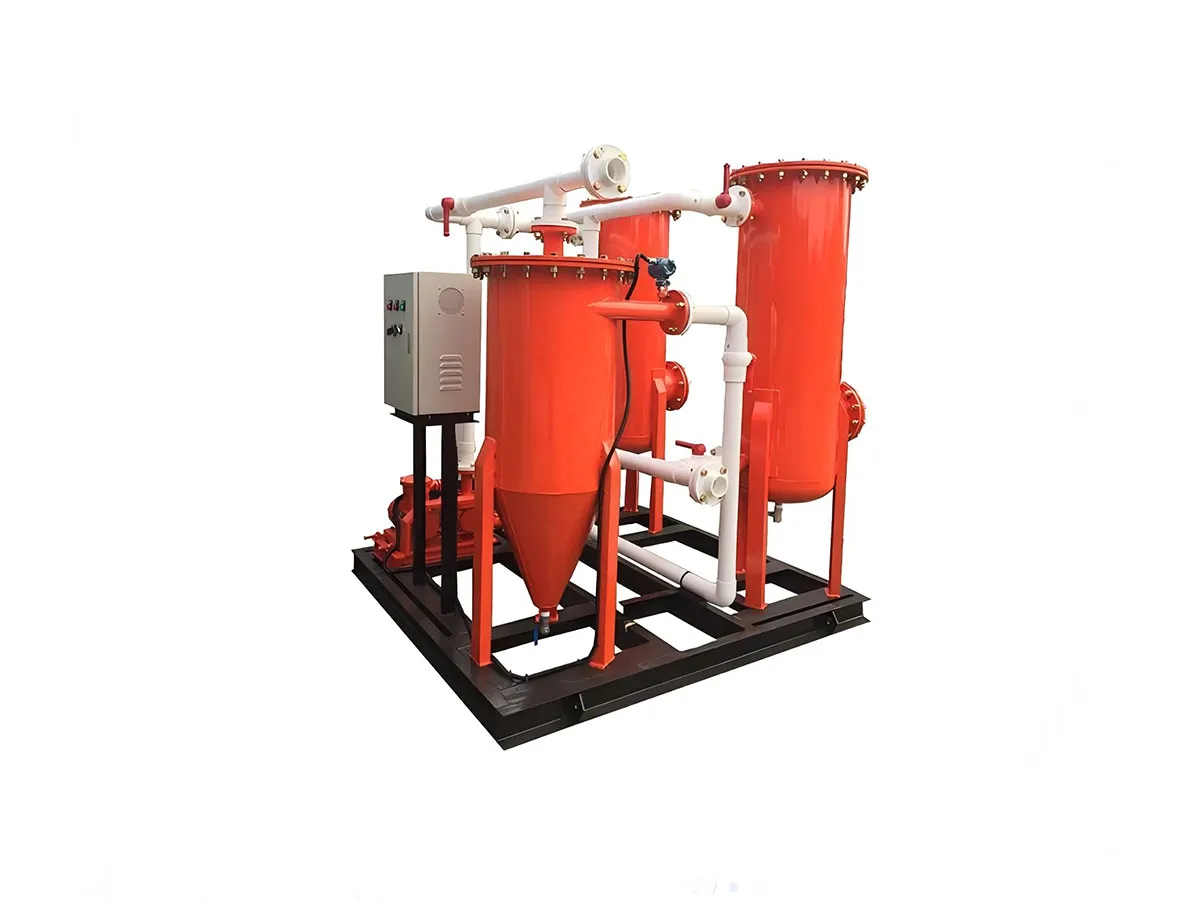

The skid-mounted biogas scrubber adopts the dry desulfurization system which is applicable for small industrial devices where H2S is less than 2000ppm. The biggest skid-mounted biogas scrubber can deal with 300Nm3/h biogas. It is the suitable solution for farm project. In the industrial waste water biogas project, if the devices has to run long time in a day, the H2S is high and has to synchronize with the nation grid, the biogas dry desulfurization system has to be designed specifically.
| Model | KDCL-50-WQ | KDCL-100-WQ | KDCL-200-WQ | KDCL-300-WQ |
| Gen-set Power(KW) | 24-60 | 80-120 | 150-200 | 250-300 |
| Gas FLow(Nm3/h) | 30-60 | 60-100 | 100-150 | 150-200 |
| Working Pressure(kPa) | 4-40 | 4-40 | 4-40 | 4-40 |
| Desulfurizer | 2 pcs | 2 pcs | 2 pcs | 4 pcs |
| Model & Size | KDTL-250-G | KDTL-400-G | KDTL-800-G | KDTL-800-G |
| SS304 | SS304 | SS304 | SS304 | |
| Φ500×1880×3.0mm | Φ600×2080×3.0mm | Φ800×2130×3.0mm | Φ800×2130×3.0mm | |
| Water separator Model & Size | KDFC-200-G | KDFC-200-G | KDFC-200-G | KDFC-200-G |
| Q235A | Q235A | Q235A | Q235A | |
| Φ500×1540×3.0mm | Φ500×1540×3.0mm | Φ500×1540×3.0mm | Φ500×1540×3.0mm | |
| Gas Blower Model & Size | NSR50-50A 1.5KW | NSR65-65A 1.5KW | NSR80-80A 2.2KW | NSR100-100A 3KW |
| Inlet & Outlet | DN50 | DN65 | DN80 | DN100 |
| Flange | PN10 | PN10 | PN10 | PN10 |
| Feric Oxide Q.TY | 2×150kg | 2×225kg | 2×300kg | 2×450kg |
| Replacement (Hours) | 1250 | 1250 | 1250 | 1250 |
| Dimension (mm) | 2000×2000×2160 | 2000×2000×2200 | 2500×2000×2250 | 4200×2000×2280 |
| Main Function | Desulfurization, Dedust, Dewater, Booster pressure, Stalibize pressure | |||
Hot Tags: biogas scrubber for biogas generator, China, suppliers, manufacturers, factory
biogas scrubber for biogas generator: Complete Technical Guide for Gas Purification Systems
A Biogas Scrubber for Biogas Generator is an essential gas treatment system designed to purify raw biogas before it enters a generator engine. In biogas power generation systems, the quality of the gas directly affects engine performance, efficiency, maintenance cost, and equipment lifespan. Because raw biogas contains harmful impurities such as hydrogen sulfide (H₂S), moisture, siloxanes, and particulate matter, a biogas scrubber plays a critical role in ensuring safe and efficient energy production.
Biogas is produced from anaerobic digestion of organic waste such as agricultural residues, livestock manure, food waste, municipal waste, and wastewater sludge. While it is a renewable energy source, untreated biogas can be highly corrosive and damaging to engines. The Biogas Scrubber System removes these impurities, making the gas suitable for use in biogas generators, CHP systems, and industrial energy applications.
A well-designed biogas scrubber improves combustion efficiency, reduces emissions, and extends the operational life of generator components.
What Is a Biogas Scrubber for Biogas Generator?
A biogas scrubber is a gas purification device used to clean raw biogas before it is used as fuel in a generator. It removes unwanted contaminants that can damage engine components or reduce energy efficiency.
The main function of a biogas scrubber is to:
Remove hydrogen sulfide (H₂S)
Reduce moisture content
Filter dust and particulate matter
Eliminate corrosive gases
Improve methane quality for combustion
Raw biogas is not suitable for direct use in engines due to its impurities.
Problem
Effect on Generator
Hydrogen Sulfide | Corrosion of engine parts |
Moisture | Engine knocking and inefficiency |
Siloxanes | Deposits in combustion chamber |
Dust Particles | Wear and clogging |
Acidic Compounds | Reduced engine lifespan |
Importance of Biogas Scrubber in Generator Systems
A biogas scrubber is not optional in most industrial biogas power systems—it is a critical component for stable and long-term operation.
Scrubbers protect internal combustion engines from corrosion and wear.
Clean biogas burns more efficiently, increasing power output.
Reduced contamination means fewer breakdowns and longer maintenance intervals.
Consistent fuel quality ensures stable generator performance.
Cleaner combustion reduces harmful emissions.
How Biogas Scrubber for Biogas Generator Works
The working principle of a biogas scrubber involves multiple stages of filtration and chemical absorption.
Raw biogas enters the scrubber system from the digester or storage tank.
Moisture is reduced through cooling or condensation systems.
H₂S is removed using one or more of the following methods:
Iron oxide media
Activated carbon
Chemical scrubbing solutions
Biological filtration
Dust and solid particles are filtered through mechanical filters.
Purified biogas is delivered to the generator engine for combustion.
Types of Biogas Scrubber Systems
Uses solid media to absorb contaminants.
Low maintenance
Simple operation
High efficiency for H₂S removal
Uses liquid solutions to absorb impurities.
High purification efficiency
Suitable for large-scale systems
Continuous operation capability
Uses microorganisms to remove hydrogen sulfide.
Eco-friendly process
Low chemical usage
Sustainable operation
Uses carbon materials for adsorption.
High precision gas cleaning
Effective for trace contaminants
Replaceable filter media
Key Components of Biogas Scrubber System
Controls incoming raw biogas flow.
Main purification chamber where gas treatment occurs.
Includes activated carbon, iron oxide, or chemical solutions.
Removes water vapor from gas stream.
Ensures stable gas flow to generator.
Delivers purified biogas to engine system.
Technical Specifications of Biogas Scrubber for Biogas Generator
Parameter
Typical Value
Gas Flow Capacity | 10–500 m³/h |
H₂S Removal Efficiency | 90%–99% |
Operating Pressure | 0.5–5 kPa |
Temperature Range | 5°C–60°C |
Material | Carbon Steel / Stainless Steel |
Media Type | Iron Oxide / Activated Carbon |
Maintenance Cycle | 1–6 months |
System Type | Dry / Wet / Biological |
Installation Type | Skid Mounted / Fixed |
Performance Indicators
Level
Efficiency
Basic System | 80% |
Standard System | 90% |
Advanced System | 95%–99% |
Scrubbers significantly increase methane usability by removing harmful components.
Ensures steady gas supply to generator engine.
Advantages of Biogas Scrubber for Biogas Generator
Prevents corrosion and mechanical damage.
Cleaner fuel reduces wear and tear.
Higher methane purity improves energy output.
Less frequent servicing required.
Reduces toxic gas emissions.
Ensures consistent generator performance.
Applications of Biogas Scrubber Systems
Used in farms processing manure and crop waste.
Cattle and pig farms benefit from cleaner gas supply.
Removes impurities from organic waste biogas.
Purifies sewage gas before energy conversion.
Handles organic municipal waste digestion gas.
Supports large-scale renewable energy production.
Biogas Scrubber vs No Scrubber Operation
Feature
With Scrubber
Without Scrubber
Engine Lifespan | Long | Short |
Maintenance Cost | Low | High |
Gas Quality | Clean | Dirty |
Efficiency | High | Low |
Corrosion Risk | Minimal | Severe |
Gas Contaminants Removed by Biogas Scrubber
Highly corrosive gas damaging engine components.
Causes condensation and engine inefficiency.
Forms deposits in combustion chambers.
Causes mechanical wear.
Reduces combustion quality.
Installation Requirements
Ventilated area
Stable foundation
Safe gas handling space
Biogas scrubber must be connected between digester and generator.
Corrosion-resistant piping
Proper sealing
Pressure regulation valves
Maintenance of Biogas Scrubber System
Check pressure levels
Monitor gas flow
Inspect filters
Check moisture separators
Replace or regenerate media
Clean scrubbing chamber
Full system inspection
Media replacement
Structural integrity check
Operational Efficiency Factors
Higher methane content improves system performance.
Optimal temperature ensures efficient scrubbing.
High-quality filtration materials improve purification rate.
Consistent gas flow ensures stable performance.
Environmental Benefits
Prevents release of harmful gases.
Supports low-emission combustion.
Improves organic waste utilization.
Economic Benefits
Less corrosion leads to fewer breakdowns.
Higher methane purity increases output.
Reduces maintenance and downtime expenses.
Future Trends in Biogas Scrubber Technology
The development of biogas scrubber systems is advancing rapidly.
Real-time gas quality monitoring using sensors.
Self-cleaning and regeneration systems.
Predictive maintenance and performance tuning.
Advanced materials for better gas purification.
Combined heat and power integration.
Frequently Asked Questions (FAQ)
It removes impurities from biogas before it enters a generator.
Because hydrogen sulfide causes corrosion and engine damage.
It is possible but not recommended due to high maintenance risks.
Typically every 1–6 months depending on gas quality.
Yes, especially for industrial and continuous-operation generators.
The Biogas Scrubber for Biogas Generator is a vital component in modern renewable energy systems. It ensures clean, stable, and high-quality biogas supply by removing harmful impurities such as hydrogen sulfide, moisture, and particulates. This not only improves generator efficiency but also significantly extends equipment lifespan and reduces maintenance costs.
As biogas technology continues to expand globally, scrubber systems will remain essential for achieving reliable, efficient, and environmentally friendly energy production. Their role in waste-to-energy conversion, industrial power systems, and sustainable agriculture makes them a cornerstone of modern renewable energy infrastructure.
